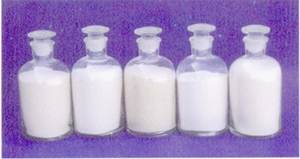

Electrical Grade Magnesium OxideProduct Brief Introduction

Type

Physical Property

Normal Condition

Humid Condition

Heating Condition

Mesh

Flow Time

Tap Density

Insulation

Puncture

Insulation

Puncture

Walt Loading

Leakage

Puncture

S/100g

g/cm3

MΩ

V/0.5mAs

MΩ

V/0.5mAs

W/cm2

mA

V/0.5mAs

High Temp

FH10

40-325

35±3

2.32±0.04

1000

2000

——

——

10

0.5

1500

FH9

40-325

35±3

2.32±0.04

1000

2000

——

——

9

0.5

1500

Mid-
low
Temp

FH8

40-325

35±3

2.32±0.04

1000

2000

——

——

8

0.3

1500

FH7

40-325

35±3

2.32±0.04

1000

2000

1000

2000

8

0.3

1500

Al-
Pipe-
Powder

FH6

40-325

35±3

2.38±0.04

1000

2000

1000

2000

7

0.2

1500

Low Temp

FH5

40-325

38±3

2.38±0.04

1000

2000

1000

2000

7

0.2

1500

FH4

40-325

38±3

2.32±0.04

1000

2000

1000

2000

7

0.2

1500

FH3

40-325

38±3

2.32±0.04

1000

2000

2000

2000

7

0.2

1500


Notes:No drying and demagnetization treatment is required for all above products before using.
a)Sample element
    High temperature,middle temperature:determined on 80 to 6.6mm roll reduced SUS304 straight element with a heated length of 420mm having a 2.4mmO.D.helix of Ni80Cr20.
    Middle-low temperature,low temperature:determined on 80mm to 6.6mm roll reduced bundy straight element with a heated length of 285mm having a 2.2mm O.D.helix of Ocr25A15.
b) For FH-8 and FH-9:suggested annealing condition at 1050+50/30mins,immediate sealing after cooling.
c) For FH-8 and FH-7:being modified and avoidable Mid-Low-Temp powder,suggested annealing condition at 1050.C+50.C/30mins,immediate sealing after cooling.

d) For FH-6:being modified powder for Aluminium Pipe.
e) For FH-5:being modified and avoidable humid powder.

f) For FH-4:being modified defending explosive powder.
g) For FH-3:being used for melding modified powder,suggested annealing condition at 420/15mins or 600/5mins.
h) Normal condition:refering as the normal state of the element after annealing and scaling.Humid condition:referring as the state of being at 5095%RH for 72 hours.
Heating condition:referring as the state of the being energized for 5 minutes and reaching thermal stabilization.
i) Packing:25kgs per package.
